Product detail


Multi Head Metal Polishing Machine

Product Description

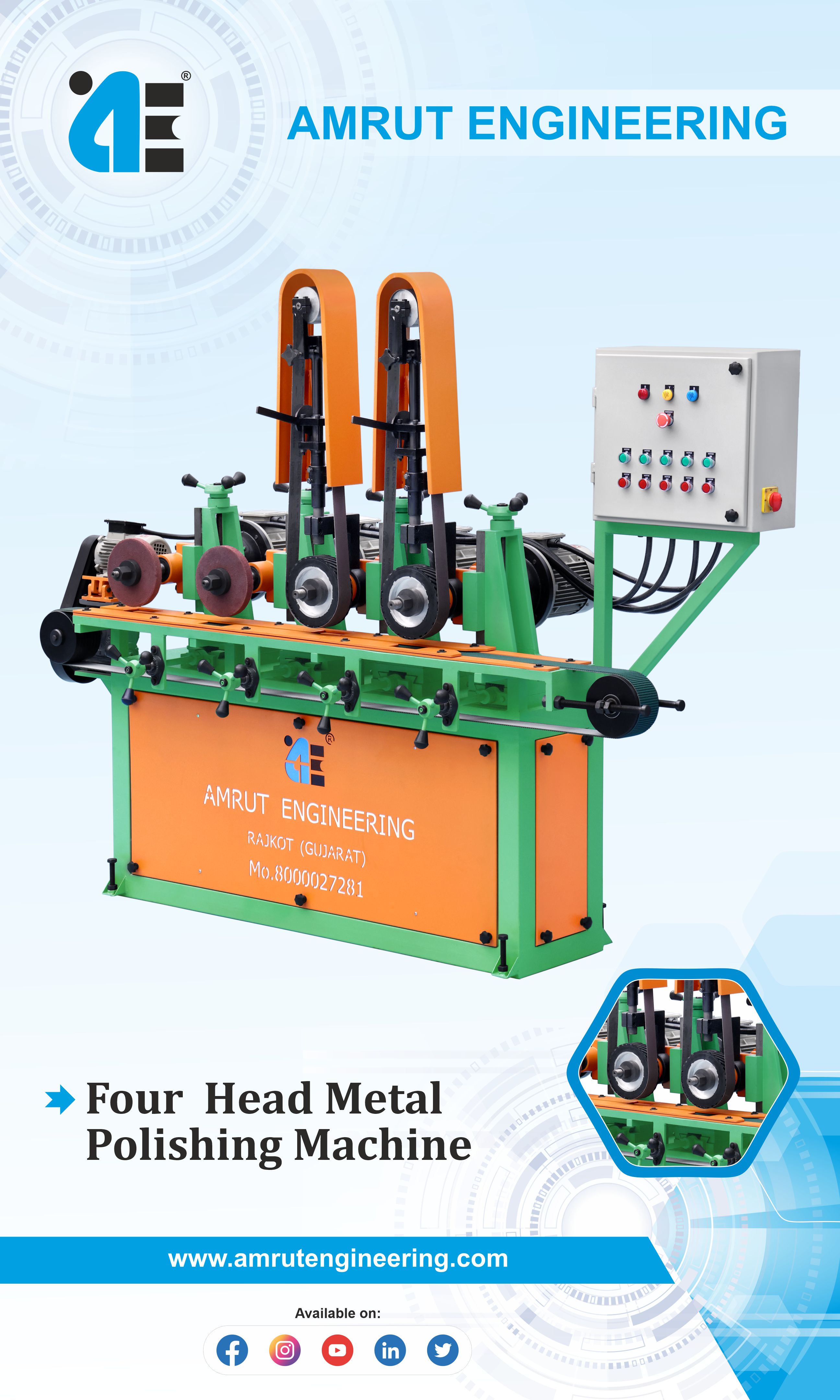

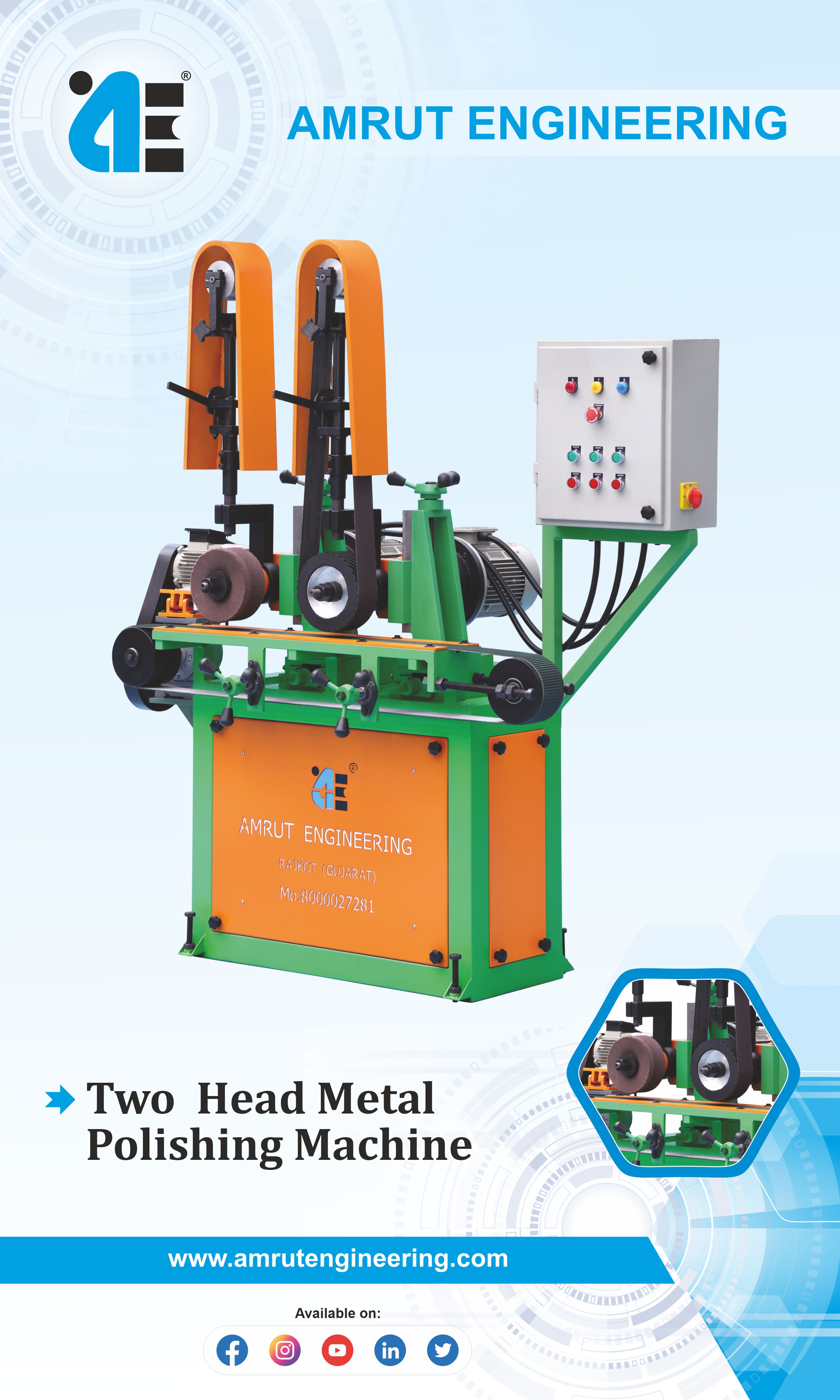

Metal polishing machine is appreciated for compact and rigid design and fast polishing feature. Fabricated using quality component, the machine effectively polishes and grinds square tube, square bar, flat component, stamping part, fine blanked parts etc.Metal polishing Machines are designed for mass production by Abrasive Belt Flat parts and surfaces. This is a semi-Automatic Machine available in single and multiple head configuration as per job requirement. Precision height adjustment by calibrated Hand wheel provided at front. Our ranges of polishing machines are available in standard Four Head Metal Polishing Machine, Two Head Polishing Machine and customized form according to the client's specification.


  • Adjustable sliding system with easy setting for perfect accuracy.
  • Vibration free structure design for perfect finishing.
  • Electric control with overload protected and dust proof.
  • Conveyor belt with fine adjustment.
  • High productivity at low cost.


Technical Specification:

Abrasive Belt Length


Abrasive Belt Width

50mm to 150mm

Rubber Contact Wheel Size

200mm × 50mm to 150mm

Main Motor

3HP / 5HP / 7.5HP (2800 RPM)

Gear Motor

1HP (1440 RPM)

Gear Box Ratio

30:1 for better control speed

Conveyor Belt Length
